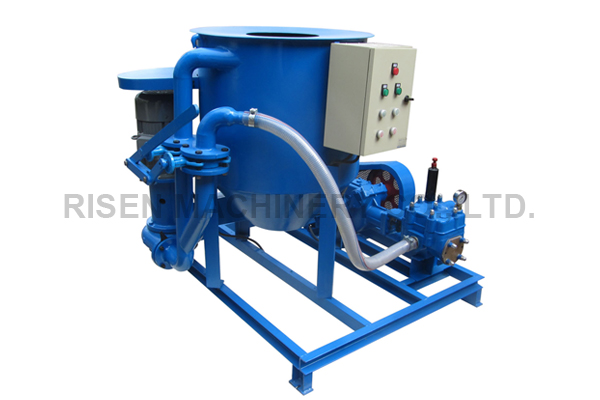

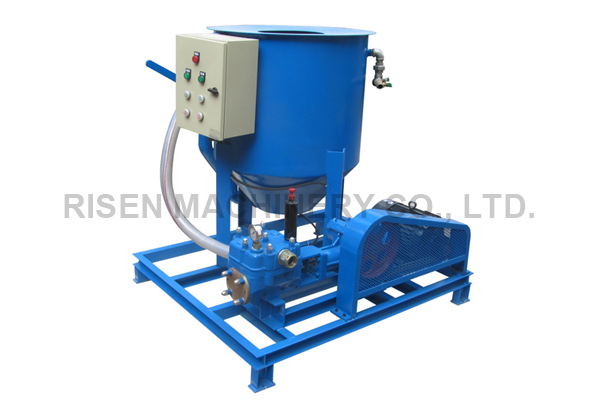

RISEN RG60/40S

A single-piston & double-action piston grout pump with mixer

Output: 60 Litre/min

Work Pressure: 40bar

Mixing tank volume: 250L

Total Power: 11kW

Description:

RISEN RG60/40S grout mixer pump is a piston pump with mixer. It is equipped with a single-piston & double-action pump as the grouting pump and a high efficiency mixer as the mixing unit. This unit can complete the mixing and grouting works by itself.

Application:

Appling for mixing and grouting the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.

Features:

● Suitable for the mixing & grouting of the cement slurry or other similar slurries ;

●  High mixing efficiency, motor directly driving impeller to get the high-speed liquid flow, about 2~3minutes to complete a mixing;

● Single piston double acting for the grouting pump;

● Gear & Vee belt transmission makes the grouting pump high mechanical efficiency and working reliability.

Technical Data

Output:

60L/min

Discharge Pressure:

4MPa (40bar)

Grout Hose ID:

38mm

Mixing Tank Volume:

250L

Mixer Motor Power::

5.5kW

Mixer Motor Power:  5.5kW

Weight:

550kgs

Overall measurement:

1350×1500×1300mm



Advantage

● Mixing Tank body manufactured in the thicker plate for more reliable work and longer use life;

● Standard gears and shaft to ensure the enough strength;

● Standard seal parts to ensure the excellent seal quality;

● All the casting units manufactured as our special design to ensure the enough strength;

● IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;

● Painted after sandblasting for a pretty appearance.
