RISEN RPT30

A compact and highly efficient screw pump to spray the wet ready-mixed cement slurry, mortar, etc., equipped with small air compressor.

Output: 30 Litre/min

Work pressure: 3MPa (30bar)

Description:

RISEN RPT30 is a screw pump, equipped with small air compressor. It is suitable for pumping or spraying the wet ready-mixed cement mortar, etc. This machine permits the easy and comfortable transport due to its small and handy dimensions and low weight.

RISEN MACHINERY system | RISEN MACHINERY CMS

Requirement on the materials:

To have a perfect mortar spraying, the diameter of the sand shall not be too big. The max. sand size is 2mm. And, the cement/sand ratio shall be ≥ 1:3.

Application:

To spray all the pumpable wet ready-mixed slurries, mortars or materials, such as cement slurry, mortar, lime plaster, gypsum plaster, masonry mortar, insulation plaster, self-leveling floor screed, etc.

Features:

● Small and handy size and low weight, quickly and easily transport even in the most confined spaces;

● The rotor/stator pump ensures the materials is pumped and sprayed out continuously and evenly;

● The machine always works with efficiency and silence;

● The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.

Technical Data

Output

30L/min

Working Pressure

3MPa (435psi)

Total Power

7.5kW

Voltage of E-motor

380V, 50Hz, 3-phase

Rev. of Rotor

280rpm

Rated output of compressor

250L/min

Max. Conveying Dist.

20m

Hopper Capacity

26L

Loading Height

800mm

Conveying Hose ID

32mm

Air Hose ID

13mm

Overall Dimension

1460*600*1100mm

Weight

190kg

Advantage

● Equipped with excellent quality small-size air compressor;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

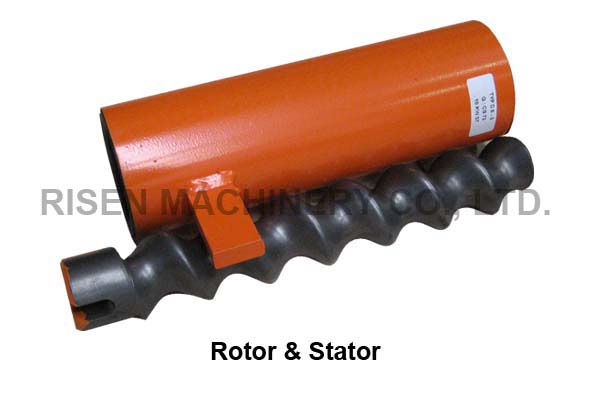

● Wear resistance rotor and stator can be replaced in the flash as required.

● Painted after sandblasting for a pretty appearance;
