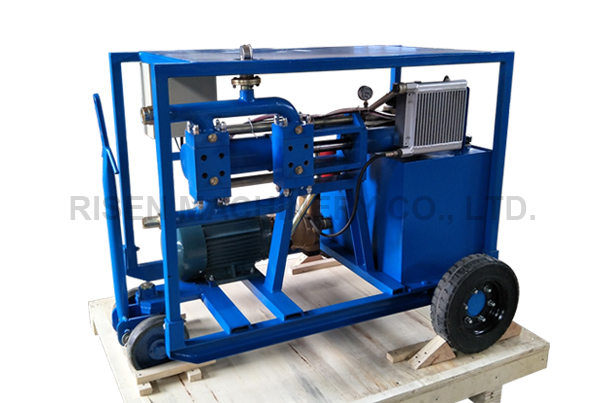

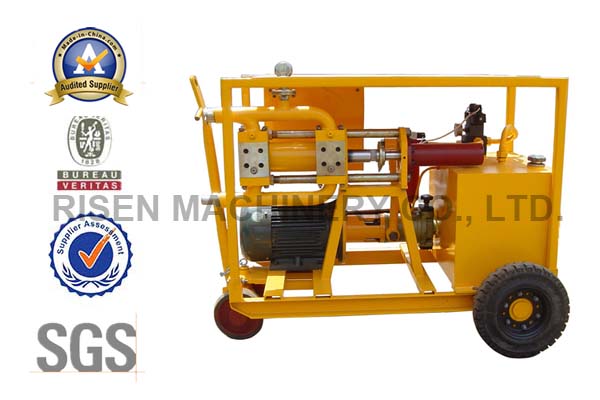

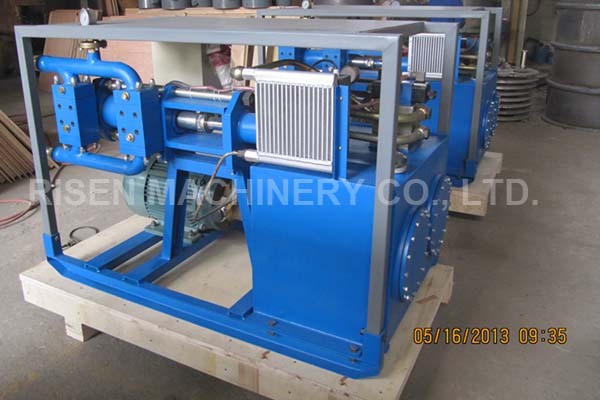

RISEN RG70

Full hydraulic high pressure grout pump.

Max. output: 70 Litre/min

Max. work pressure: 10MPa (100bar)

Description:

RISEN RG70 is the high pressure grout pump. It is a kind of piston pump with single cylinder and double acting. Its main oil pump is a variable piston unit adjusted by hand, so the output of pump can be adjusted. It has many advantaged characters of simple structure, higher working pressure.

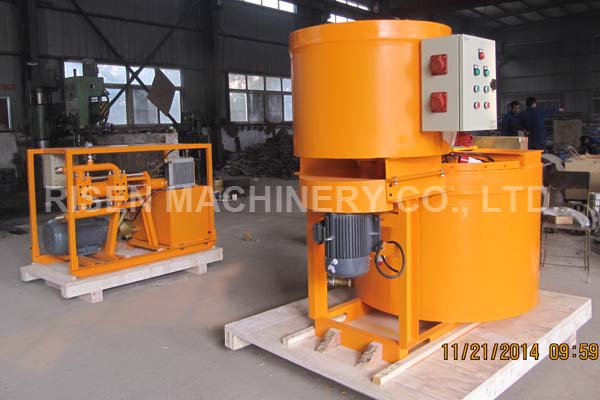

RISEN RG70 often works together with RISEN grout mixer.

Application:

High pressure grout the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.

Features:

● Plunger pump as oil pump for the reliable work under high-pressure;

● Variable displacement pump for the low heat system and high system efficiency;

● Solenoid operated directional valve or mechanical direction valve can be chose according to the different work environment.

Technical Data

Model

RG70Y

RG70M

Max. Output

70L/min

70L/min

Max. Working Pressure

10MPa

10MPa

Max. Frequency

31/min

31/min

Grouting Cylinder Dia.

110mm

Grouting Cylinder Stroke

150mm

Suitable Ratio W/C

Below 0.35

Power

7.5kW

15kW

Weight

540kgs

600

Overall Dimension (L×W×H)

1505x770x1110 mm

Work Character

Output can be automatically changed according to the grouting pressure. Lower output with high pressure and big output with lower pressure. Suit for the technics needs to keep grouting presure

Invariable pressure, but can be continually adjusted by hand. Suit for the technics needs change grouting speed.

Grouting way

Single liquid (double liquid is optional)

Chassis

Steel skid (wheel is optional)

Advantage

● Special electroplating for the work cylinder’s inner wall;

● Famous domestic or international standard hydraulic elements;

● IP55 100% new electrical motor;

● Electrical control box manufactured by thicker plate and standard Schneider electrical elements;

● Standard seal parts to ensure the excellent seal quality;

● Painted after sandblasting for a pretty appearance.
