A rotary shotcrete machine, to spray the dry or damp concrete mixture in tunnel, under mine, deep-foundation engineering, slope engineering, swimming pool etc.
Available in E-motor, air motor or diesel engine
Output Capacity: 6.5~7 cubic meter/hour
Maximum Aggregate: 15mm

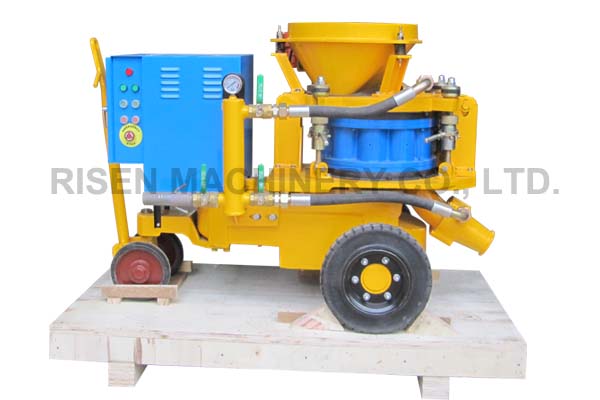

RISEN PZ-7 is a rotary shotcrete machine, to spray the dry or damp concrete mixture. And, it has been designed especially for steel fibre spraying.

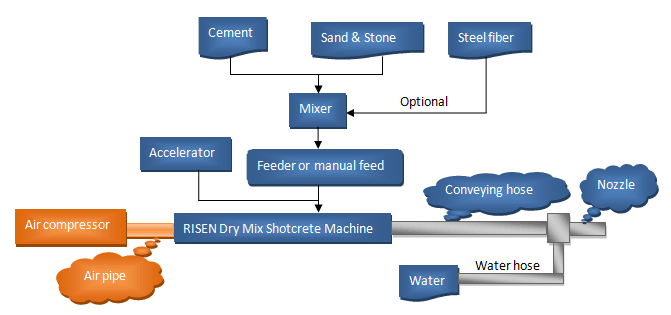

RISEN PZ-7 can work together with the accelerator dosing unit RISEN RH15 to do the wet shotcreting.

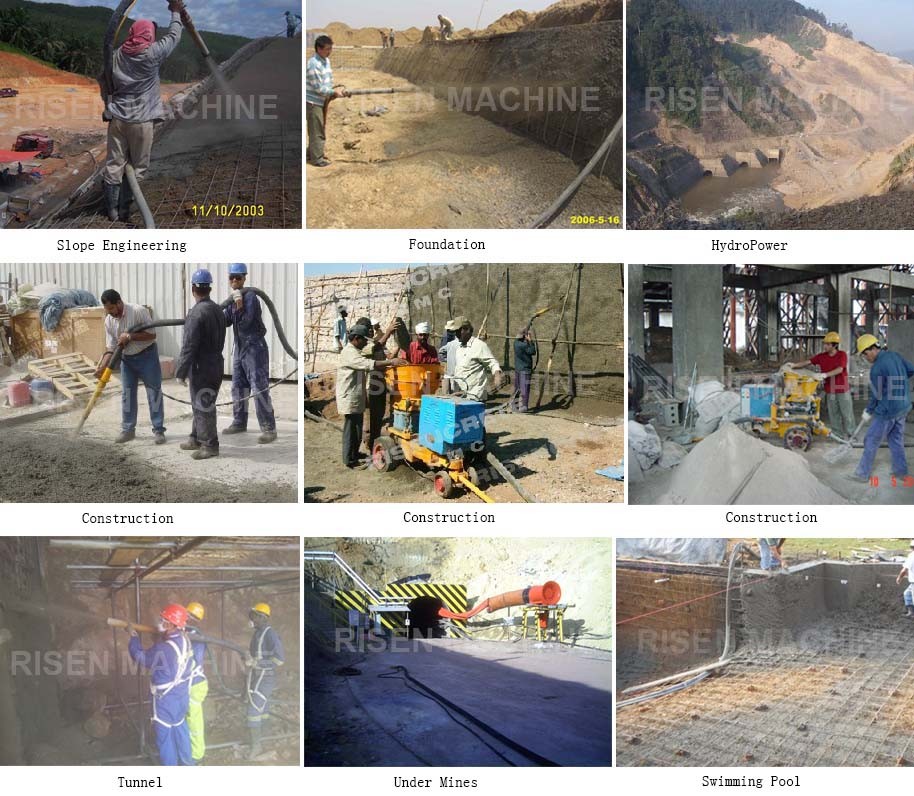

Application:
● Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
● Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
● Refractory spraying and repair for industrial kilns or kilns’ inner liner.
● Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce
clearance and maintenance period.
● Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
● Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong
consumption parts life.
● Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
● Complies with the essential health and safety requirements of the Directive 2006/42/EC.
|
Output Capacity: |
6.5~7 cubic meter/hour * |
|
Maximum Conveying Distance: |
150 m (492 ft) |
|
Desired Shotcrete Ingredient Ratio: |
Cement/sand and gravel < 0.35 |
|
Maximum Aggregate Size: |
15 mm (3/5”) |
|
Inner Diameter of Conveying Hose: |
51 mm (2”) |
|
Working Compressed Air Pressure: |
29 ~ 87 psi (0.2 ~ 0.6 MPa) |
|
Conveying Air Consumption: |
320~ 350 cfm (9 ~ 10 cubic meter / min) |
|
Ideal Rotor Speed: |
11 rpm |
|
Main Motor Power: |
*E-motor, 7.5kW (10.2hp) |
|
Dimensions: |
1650 x 900 x 1200 mm |
|
Net Weight: |
880 Kg |
|
Noise: |
Less than 80dB |
Note:
*When the PZ-7 works together with the dosing unit to do the wet shotcreting, the output is 5m3/hour.
*Air motor or diesel engine is optional.
● High-accuracy Gearbox, high clean degree inside;
● High wear resistance and longer use life consumable parts;
 |
 |
 |
 |
 |
 |
|
Sealing Plate |
Rotor Disk |
Rubber Chamber |
Cone Casing Pipe |
Rubber Elbow |
Nozzle |
● Military standard solid wheels for different construction site;
● IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
● National standard bearing, valve and screw etc.;
● All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the
casting;
● The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;
● Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
● Painted after sandblasting for a pretty appearance;
