A special large-size rotary shotcrete machine with variable output, Auto-lubrication System and Time hour, to o spray the dry or damp concrete mixture
Only available in E-motor
Output Capacity: 3~9cubic meter/hour
Maximum Aggregate: 20mm

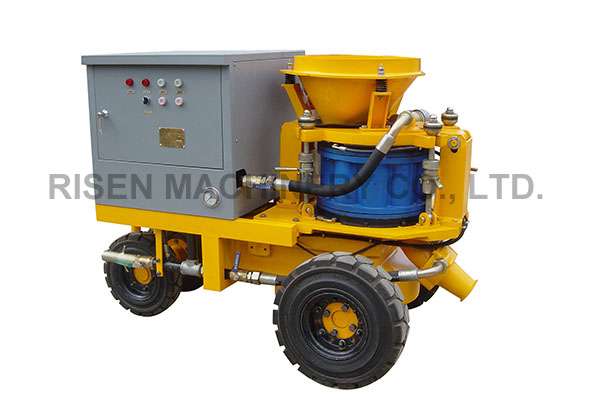

RISEN PZ9ML is a large size rotary shotcrete machine with special performance to spray the dry or damp concrete mixture. Its output can be adjusted from 3~9cubic meter/hour. And, it is equipped with auto-lubricating system and time hour.
Application:

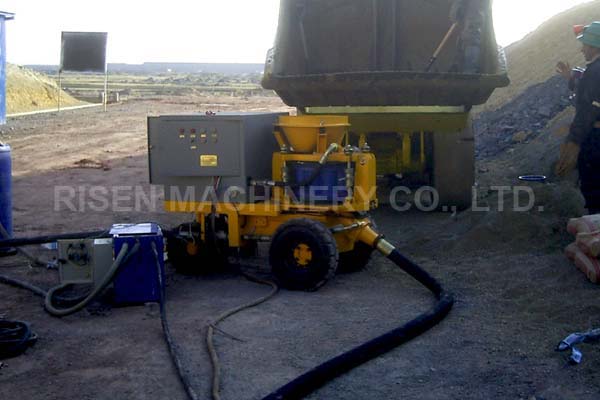

● Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
● Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
● Refractory spraying and repair for industrial kilns or kilns’ inner liner.
● Capacity-variable System
The output can be adjustable from 3 cubic meters /hour to 9 cubic meters/ hour. It can be used for the different working condition.
● Auto-lubricating System
Enhance the sealing of air-pipe system; lengthen the use life of the rubber sealing plate.
● Time Hour
Indicate the accumulated work time to ensure that the reliable maintenance plan is made.
● Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce
clearance and maintenance period.
● Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
● Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong
consumption parts life.
● Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
● Complies with the essential health and safety requirements of the Directive 2006/42/EC.
|
Output Capacity: |
3~9 cubic meter/hour |
|
Maximum Conveying Distance: |
150 m (492 ft) |
|
Desired Shotcrete Ingredient Ratio: |
Cement/sand and gravel < 0.35 |
|
Maximum Aggregate Size: |
20 mm (4/5”) |
|
Inner Diameter of Conveying Hose: |
64 mm (21/2”) |
|
Working Compressed Air Pressure: |
29 ~ 87 psi (0.2 ~ 0.6 MPa) |
|
Conveying Air Consumption: |
320~ 350 cfm (9 ~ 10 cubic meter / min) |
|
Ideal Rotor Speed: |
2.2~11 rpm |
|
Main Motor Power: |
E-motor, 7.5kW (10.2hp) |
|
Rated Pressure of Lubricating Pump: |
2610psi (18MPa) |
|
Output of Lubricating Pump |
3ml/min |
|
Dimensions: |
1550 x 900 x 1126 mm |
|
Net Weight: |
900 Kg |
|
Noise |
Less than 80dB |
● High-accuracy Gearbox, high clean degree inside;
● High wear resistance and longer use pfe consumable parts;
 |
 |
 |
 |
 |
 |
|
Seapng Plate |
Rotor Disk |
Rubber Chamber |
Cone Casing Pipe |
Rubber Elbow |
Nozzle |

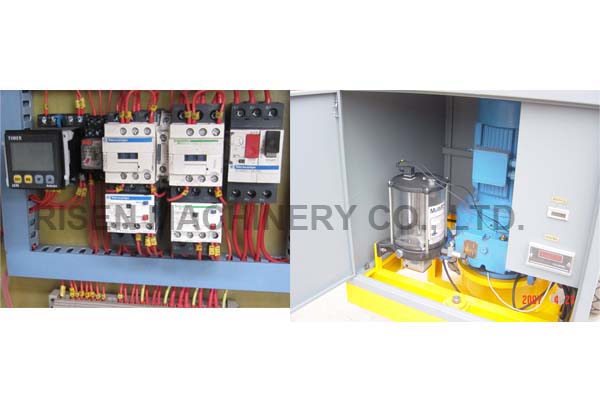

● IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
● National standard bearing, valve and screw etc.;
● All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not
the casting;
● The sheet metal parts made of the thicker steel plate to have a stronger quapty, such as the hopper and electrical control box;
● Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
● Painted after sandblasting for a pretty appearance;
