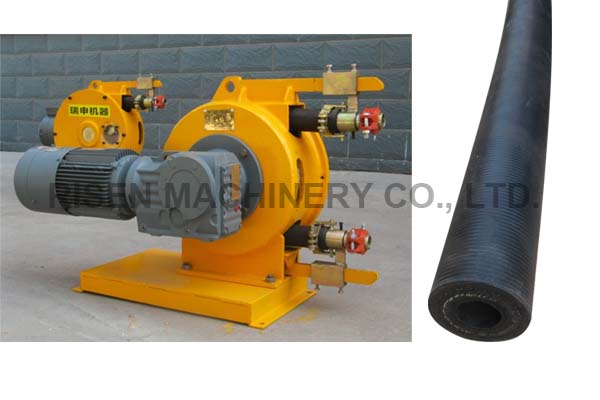

Main consumable part of RISEN RH series hose pump;

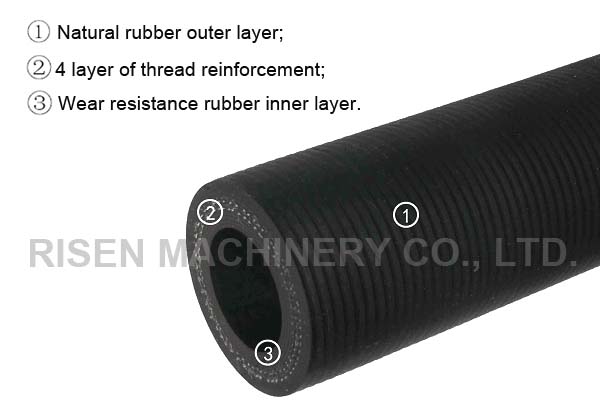

A natural rubber hose with 4 layer of thread reinforcement.

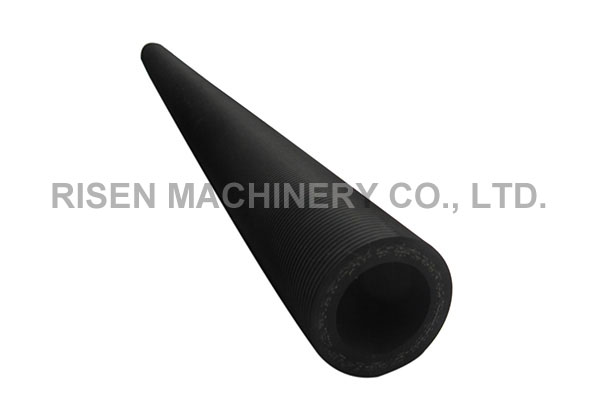

RISEN squeeze hose is the main consumable part of RISEN RH series hose pump.
It is a natural rubber hose with 4 layer of thread reinforcement.

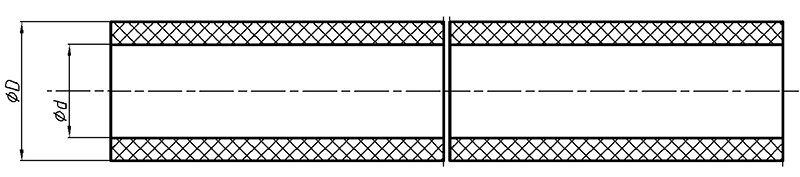

1. Standard one

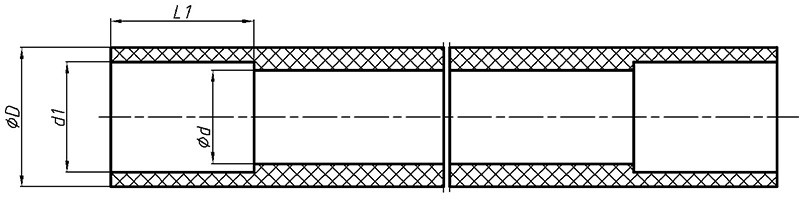

2. Special one
Application:
● Pump the benonite slurry or foam.
● Construction – pumping the cement slurry, mortar or light-weight concrete or foam concrete, etc.
● Chemical – corrosive acids,and bases.Textiles – fibres,dyes and additives.
● Pint and pigments – dispersion mill feed, pigment and latex transfer.
● Water and wastewater treatment – lime, kalic,sodium hypochlorite,ferric chloride and sludges.
● Printing and packaging – varnishes,inks, coatings and adhesives.
● Mining and mineral separation – tailing
● Slurries,sludges and reagents.
● Ceramics and glass – fine china.
● Bursting pressure: ≥5MPa
● Work Pressure: 1.5MPa
● Media temperature: <100℃
● Acid-resistance:
Concentration Region of Vitriol: 30%
Concentration Region of Hydrochloric Acid: 10~20%
Concentration Region of Nitric Acid: 5~10%
Concentration Region of others: 10%
● Alkali-resistance:
Concentration Region of Lye (NaOH): 25%
Concentration region of Others: 25%
Hose Model |
Hose ID |
Hose OD |
Hose length |
Max.Particle Dia. |
mm |
mm |
mm |
mm |
|
|
mm |
mm |
mm |
mm |
R15 |
15 |
36 |
715 |
0 |
15 |
36 |
715 |
0 |
|
R25 |
25 |
49 |
900 |
0 |
25 |
49 |
900 |
0 |
|
R32 |
32 |
60 |
1030 |
1 |
32 |
60 |
1030 |
1 |
|
R38 |
38 |
66 |
1070 |
3~5 |
38 |
66 |
1070 |
3~5 |
|
38 |
66 |
1070 |
3~5 |
|
R50-1450 |
51 |
84 |
1450 |
5 |
51 |
84 |
1450 |
5 |
|
R50-1680 |
51 |
84 |
1680 |
5 |
51 |
84 |
1680 |
5 |
|
R65-1680 |
64 |
100 |
1680 |
5 |
64 |
100 |
1680 |
5 |
|
R65-2000 |
64 |
100 |
2000 |
5 |
64 |
100 |
2000 |
5 |
|
R76-2000 |
76 |
116 |
2000 |
5 |
76 |
116 |
2000 |
5 |
|
R76-2200 |
76 |
116 |
2200 |
5 |
76 |
116 |
2200 |
5 |
|
R100 |
102 |
148 |
2200 |
5 |
102 |
148 |
2200 |
5 |
● Corrosion resistance;
● Abrasion resistance;
● Suitable for shear sensitive fluids;
● Exceptional performance when handing the high viscosity fluids, high density fluids;
● Tight tolerances for low stress on bearings;
● Perfect compression for long life;
● Excellent suction performance - 5m suction lift;
● High pressure capability;
● Repeatable volumetric accuracy to ±3%;
● Consistent capacity independent of varying suction and discharge condition.
